Racecar Safety

General Safety Considerations, etc. (All Classes)

)



Miscellaneous
1.   All combustible materials must be removed from the interior.  Fire gets other people moving, but you can do without it.
2.   All glass must be removed with exception of the windshield, which can be replaced with lexan or screening.  All windshield components must be securely fastened – top, bottom, and both sides.
3.   Doors need to be welded, bolted, or strapped shut during racing activities, in such a manner that will assure that the doors will remain in the closed position in any racing incident.  Pre-1937 cars with fabric (turret) tops must cover that section of roof with sheet metal properly secured, or plated over the driver.
4.   All sharp edges and protrusions which could injure the driver or anyone else must be removed or protected.
5.  Master electrical disconnects and fuel shutoffs are recommended, and should be placed within reach of the driver and rescue crews. These should be conspicuously visible and clearly identified.

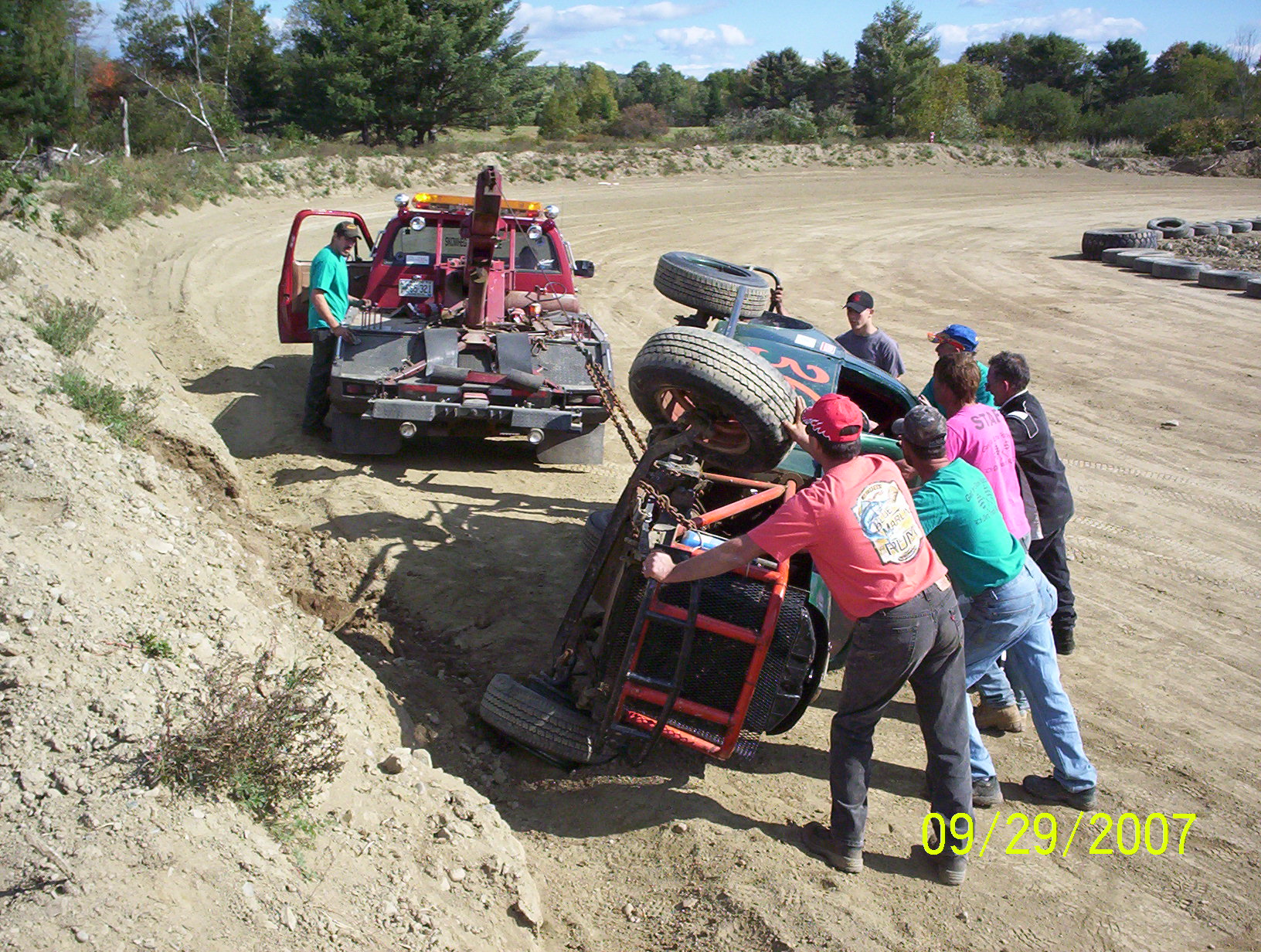

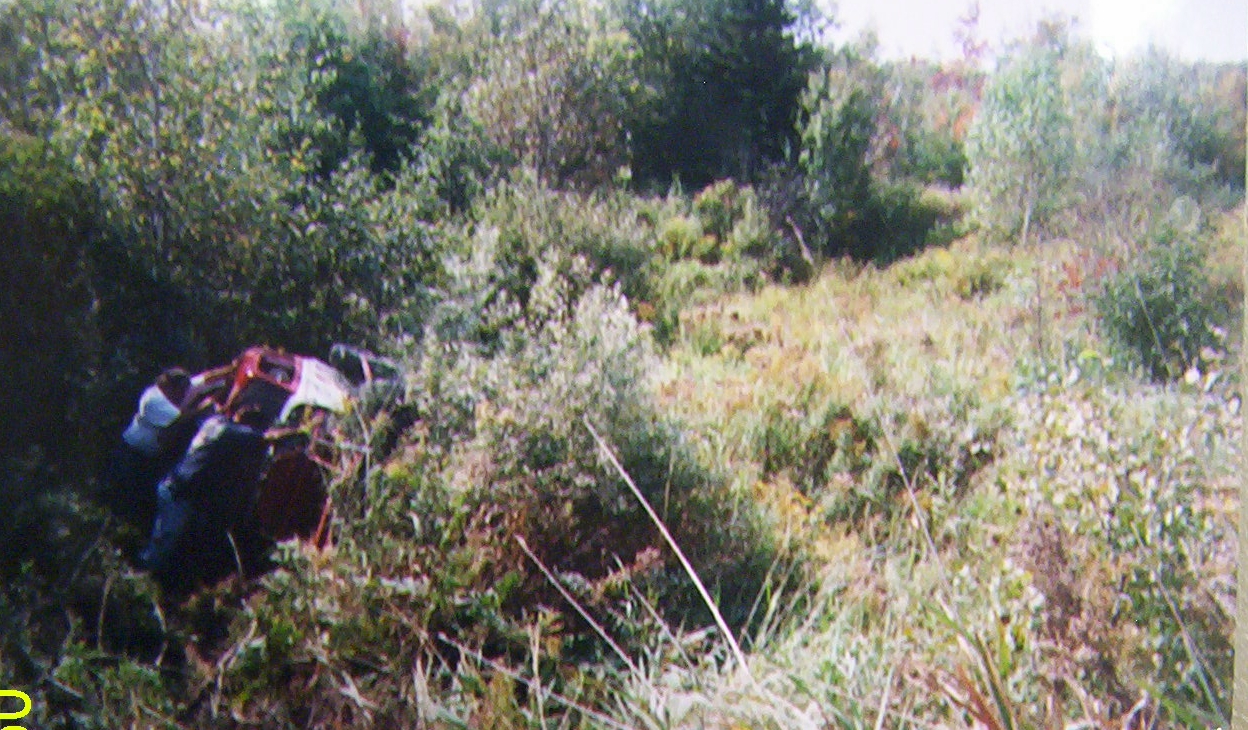

Roll Cages – and YES, our vintage race cars HAVE ended up upside down !!!

A “six (6) point” roll cage of standard .095 x 1 ¾’’ roll cage tubing  OR 1 ½” schedule 40 black iron pipe must be the minimum cage being considered.  In the case of a rebuilt “original” car, the original ‘roll cage’ may be retained and expanded upon, so long as the COMPLETED CAGE ASSEMBLY meets the intent of this section.  Safety has a priority over originality.

The four (4) uprights and the two (2) rear braces shall be securely welded to the vehicle frame structure.  On damaged frames, this might require load distribution plates of no less than 3/16” plate steel welded directly to the frame.

The main cage structure must be stabilized side-to-side by at least one diagonal brace near passenger floor level attached to the upright immediately above and behind the driver.

The cage structure must be stabilized front-to-rear by single braces running from the top of the main cage down and back to the rear frame “kickups”, as close to 45 degrees as frame and body configuration allow

There shall be at least one (1) dashboard level cross bar between the two forward vertical uprights.

There will be no less than three (3) horizontal door bars on the driver’s side, and 2 on the passenger’s side.  Early Modifieds in which the body has been narrowed may require 3 door bars each side to adequately protect the driver.

There shall be at least one ‘roof bar’ diagonally installed above the driver at the top of the cage supporting the unreinforced sheet metal roof area.

Additional crash protection should be provided UNDER the driver, as well.  (We had a friend permanently and seriously disabled at Exeter when hit under the seat and the whole area collapsed).  Areas both above and below the driver can be quite vulnerable when the car is parked on its side, and hit hard by a moving race car.  Seats are best firmly attached to the roll cage, so the driver stays within the cage.

All roll cage welds need to be of quality, demonstrating adequate penetration.  Each connection is best “fishmouthed”, and welded completely around the circumference of the tube, if at all possible.  Gussets should be employed in stress areas of weakness.  No holes should be drilled in .095 roll cage tubing; and no holes larger than ¼  inch in iron pipe bars.  Any such holes should be kept to an absolute minimum.

Whereas MANY vintage race cars, in the distant past, fell victim to crash induced structural frame failure/collapse, particularly immediately ahead of the front body mounts.  It is highly recommended that a front “hoop” be installed between the front cage (dash) uprights and the front radiator guard,  reinforced in such a manner as to create a “truss” structure of far greater strength.  It may just save your car !

Likewise, rear frame structures are particularly vulnerable to side impacts behind the rear wheels.  Therefore, x-bracing of the rear frame rails is also recommended.  That too may save your car !

A roll cage bar can easily break an arm or leg in a relatively ‘soft’ crash, so roll bar padding is necessary in those areas where driver impact may occur.

Steering wheel centers should be firmly padded.  Removable steering wheels can be a real advantage with modern racing seats.  MAKE SURE you can move fast and get out of your seat easily when you release your belts.

Belts/Harnesses
A three inch five (5) point quick release racing style harness must be the minimum considered.   This harness must be in good condition and securely fastened to the frame/roll cage structure.  Strap attachments must be mounted in line with the direction of pull to be effective.  Lap belts must be angled down and to the rear at 45 to 60 degree angle to the ground, and as close to the hips as possible, to be effective.  Shoulder straps should be secured just BELOW shoulder level.

Harness straps and attachments must be capable of withstanding violent snap rolls and impact stresses (3000 #), and bolted with 3/8” grade eight (8) bolts.

Sharp edges in proximity of harness straps must be protected by an edge guard – straps WILL move in a crash, and you DO NOT want your belt cut while you are in mid-air.

Window nets are required for all classes.  If the passenger door is cut down, consider using one or two old lap belts with quick release buckles to protect the opening from flying tires, etc.

Safety harnesses will be inspected by Safety Committee members before any racecar is allowed to participate in any racing event.

Seats
A padded aluminum racing seat is required.  Seats must be firmly attached directly to the frame/roll cage structure by no less than six (6) 3/8 inch grade eight bolts and flat washers.  One must NEVER attach a racing seat to the floorboard where it might easily come loose in a crash.

Batteries
It is recommended that batteries be securely mounted OUTSIDE the driver’s compartment.  However, batteries may be installed inside the driver’s compartment, so long as they are SECURELY MOUNTED and SECURED inside an angle iron frame/support, and covered

Fuel Tank – * SEE GENERAL SAFETY CONSIDERATIONS #1
The safest and best fuel tanks are without question the metalclad neoprene bladder type racing fuel cells stuffed with foam.  These fuel cells are HIGHLY RECOMMENDED.  All cars with something other than an approved Fuel Cell will be inspected and must be approved before being allowed on the track.

It is understood that no fuel storage system can be 100% safe in a racing situation.  If you should choose to use something other than the above described fuel cell, it must offer significant protection from rupture and release of fuel.

Whatever fuel container is used,  connections must be secure and protected from impact from any direction.
Vents must be designed to prevent discharge of fuel if the vehicle is upset.

Regardless of what you choose to carry your fuel, it is necessary that you secure your fuel tank to the frame/roll cage in such a way that it is protected from direct impact, and cannot come loose in a snap roll.

In the 50’s we used to run up to 35 lap features and come no where near draining our 5 gallon fuel tank, so large quantities of fuel, or large fuel cells are completely unnecessary for our purposes.  Five or eight gallons is more than sufficient.

 Fuel lines running through the driver’s compartment MUST be metallic, firmly secured, and protected from damage. Fuel lines running to the engine must also be securely fastened and protected from damage.

Firewalls/Floorpans

The rear wheels and fuel compartment must be separated from the driver’s compartment by a complete metal firewall, extending full width of the body.  Steel is highly recommended, as aluminum can “go away” in an intense fire.  There must be a complete original or fabricated metal floor pan from the rear firewall to the front firewall.  The front firewall shall be sufficiently complete to protect the driver from fire and hot engine coolant leakage.  Some holes may need to be plugged.  Consideration should be given to running a hood completely covering the radiator and hoses to keep any escaping hot water from injuring the driver.

Windshields/Screens

Each car needs to have AT LEAST a ½ width glass or lexan windshield, or a similar ½” mesh screen  (see firewalls above), to protect the driver from flying debris, such as the rocks that seem to be prevalent in the Maine dirt.  Windshields must be well supported and secured to keep them with the car in all situations.  Two (2) or three (3) vertical windshield ribs may be worthy of consideration.

Open Driveshafts

Open driveshafts must to be painted white for visibility, just in case they decide to depart the vehicle.  A complete 360 degree driveshaft safety loop of substance must always be provided for an open shaft, at a point 6 to 12 inches behind the transmission.

Brake Systems

Each race car must be equipped with a properly functioning braking system.  Mechanical braking systems must incorporate all four wheels, OR two wheels utilizing free floater conversions.  Hydraulic systems must incorporate a minimum of two wheels functioning reliably and efficiently.

Fire Extinguisher

Each race car must carry a fire extinguisher SECURELY FASTENED within convenient reach of the driver (original hanging brackets are not acceptable).  The extinguisher must be able to be released and utilized quickly by the driver in an emergency, from the drivers seat !

Personal Protection

Each driver must wear an approved racing helmet during any on-track event.  It is highly recommended that each driver
wear a full approved fire resistant protective suit, including gloves and shoes during any race event

Fuel

Pump Gasoline is the only fuel to be playing with, and is the only fuel allowed.







Skid Pan

For protection of the oil pan, a skid pan is highly recommended.

Bumpers/Guards/Rubrails

Bumpers must be securely welded or bolted to the frame and should not extend beyond the center of tire tread.  Bumpers must  be constructed in such a fashion that there are no sharp edges which could cut tires, or act as a ‘can opener’ to body sheet metal or fuel tanks.  Bumper ends should be rolled or otherwise fashioned to minimize locking of bumpers.

It is recommended that open wheel cars run secure rub rails on both sides of the car to minimize the possibility of a race car becoming airborne.  Open wheels will air launch quite effectively.  The ends of rub rails should be rolled back to the frame, rather than end with sharp angles that can cut tires.  Rub rails will not extend beyond the outside of the tires.  .

Cooling Systems

Drivers should consider protection from hot fluids by either a firewall/hood or firewall/full windshield.  A coolant ‘catch can’ is also a good idea, and may be required on asphalt tracks.  A “catch can” should be made of metal or plastic, and not glass.  Coolant must be water only, except for cooling enhancing additive.

Paint/Lettering

Numbering is on a first come, first served basis – if an Association member already has your number, it is time for negotiation, or pick another.  It would, however, be appropriate to give preference to authentic race cars desiring their original number !  Numbers should be at least 12 inches high and wide enough to see, and on both sides of the car – the roof or trunk would be nice, too..
